WAFER CHECK VALVE - VQ 40

Product Details Isolation
Application
Salient Features
Single Plate, Swing Type Design, Wafer Style Body
Easy Maintenance, Lifting Bolt Provided for Easy Installation 150# / 300#
Ansi Class / Rating API 6D / API 594
Design Standard API 6D / API 594
Face to Face API 598
Testing Standard End Connection Wafer End
Size 50 mm to 600 mm
Material Body:- WCB / CF8 / CF8M,
Disc:- WCB/ CF8 / CF8M
Seat:- EPDM/ Nitrile / PTEE
Operation Auto

GLOBE VALVE - VQ 50

Product Details Throttling
Application
Salient Features
OS & Y Construction, Body & Bonnet Cast With Unoform Section, Pricision Machined,
Welded & Renewable Seat Rings, Guided Plug Type Disc
Ansi Class / Rating 150# / 300# / 600# / ND 40
Design Standard BS 1873 / API 600
Face to Face ASME B 16.10 / ISO 5752
Testing Standard API 598
End Connection Flanged to Suit ASME B 16.5 /ASMEB 16.47 or as per Requirement
Size 25 mm to 300 mm
Material Body WCB / CF8 / CF8M
Operation Manual, Gear Operated

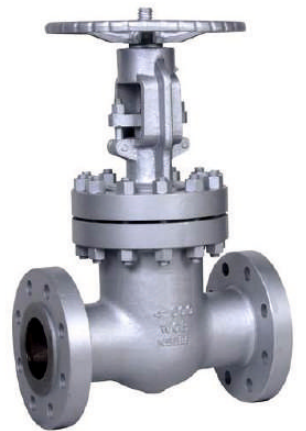

GATE VALVE - VQ 60

Product Details Isolation
Application
Salient Features
Full Post design, Body & Bonnet Cast with Uniform
Section Precision Machined, Flexible Wedge, Renewable Seat Rings, Welded Seal
Ansi Class / Rating 150# / 300# / 600#
Design Standard Api 600 / ISO 10434
Face to Face ASME B 16.10 / ISO 5752
Testing Standard API 598
End Connection Flanged to Suit ASME B 16.5 / ASME B 16.47 or as per Requirement
Size 25 mm to 300 mm
Material Body WCB / Cf8 / CF8M
Operation Manual, Gear Operated

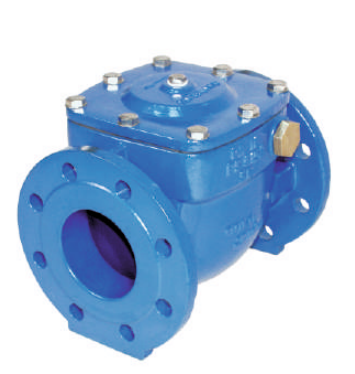

CHECK VALVE - VQ70

Product Details Isolation
Application
Salient Features
LIFT TYPE, RENEWABLE SEAT, METAL TO METAL SEAT,
BOLTED BODY COVER JOINT, FULL GUIDED DISC THOUGH
THE TOTAL TRAVEL, EASY MAINTENANCE
Ansi Class / Rating 150# / 300# / 600# / ND 40
Design Standard API 6D / BS 1868 - 1873 / ASME B 16.34
Face to Face ASME B 16.10
Testing Standard API 598 / API 6D
End Connection FLANGED TO SUIT ASME B 16.5 / ASME B 16.47 OR AS PER REQUIREMENT
Size 25 MM TO 300 MM
Material BODY :- CAST STEEL, STAINLESS STEEL
Operation AUTO

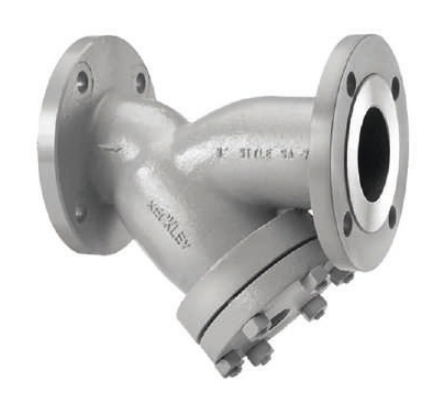

STRAINER - VQ 80

Product Details Isolation
Application
Salient Features
High Efficiency, Longer Working Life, Low Maintenance cost,
Abrasion Resistant Flexible Installation ( Horizontal / Vertical )
150# / 300#
Ansi Class / Rating Manufacturer, ASME B 16.34
Design Standard ASME 16.10
Face to Face API 598
Testing Standard Screwed End / Flanged to Suit ASME B 16.5 /
End Connection ASME B 16.47 OR AS per Requirement
Size 25 mm to 400 mm
Material Body:- C.I. / WCB / CF8 / CF8M
Screen:- Stainless Steel
Operation Auto

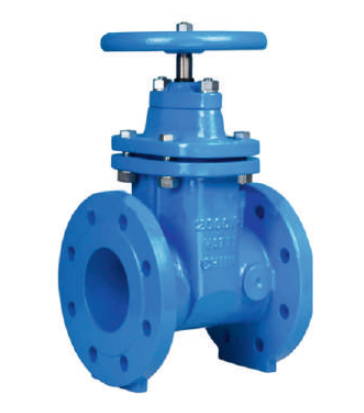

SLUICE VALVE - VQ 90

Product Details Isolation
Application
Salient Features
Non Rising Stem Design, Rigid & Study Design,
Perfect Interchange ability of Components, Low Friction
Assured Leak Tightness for Long Service Life
Ansi Class / Rating PN 10 / PN 16
Design Standard IS 14846
Face to Face IS 14846
Testing Standard IS 14846
End Connection Flanged to Suit IS 1538 (Table IV & VI )
Size 50 mm to 300 mm
Material C.I. / D.I.
Operation Manual, Gear Operated

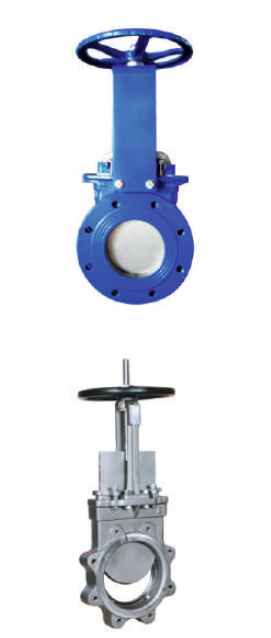

KNIFE EDGE / PULP VALVE - VQ 100

Product Details Isolation
Application
Salient Features
Least Wear & Tear, Effective Functionality, Easy Maintenance
& Installation, Corrosion Resistant, Robust & Long Life 150#
Ansi Class / Rating ASME B16.34
Design Standard ASME B16.10 / ISO 5752
Face to Face Wafer Type / Lug Type / Flange to Suit ASME B 16.5 / BS16.10
Testing Standard
End Connection
Size 50 mm to 600
Material Body:- C.I. / W.C.B. / CF8 / CF8M
Gate:- Stainless Steel
Operation Manual / Gear / Pneumatic

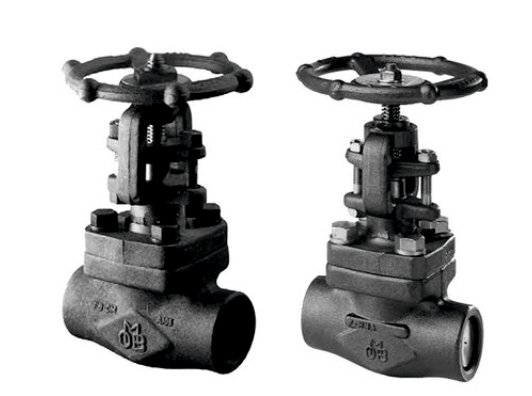

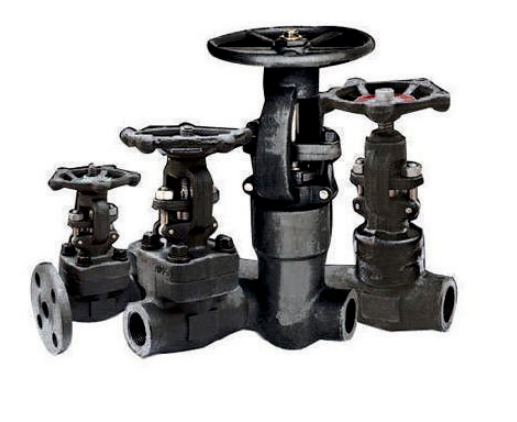

FORGE STEEL VALVE - VQ 120

Product Details Isolation / Throttling / Non-Rerurn Flow
Application
Salient Features
OS & Y Construction, Renewable Seat Rings,
Lift ype Design
800#/1500#/2500#
Ansi Class / Rating API 602/BS 5352
Design Standard ASME B 1.20.1 (Threaded)/ASME B 16.11 (Socket)
Face to Face API 598 / ISO 5208
Testing Standard Screwed End / Socket weld End / Butt Weld End
End Connection
Size 15 mm to 50 mm
Material Body :- A105/F11/F12/F51/LF2/F304/F304L/F316/F316L
Trim :- 13% Cr, Stellite etc.
Operation Manual/Auto
